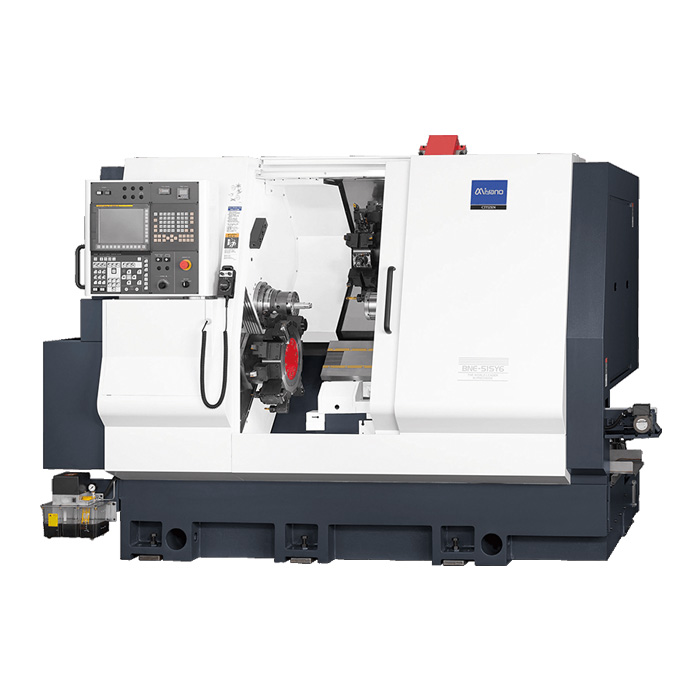

| BNE Taking BNE series as basis with features of high stiffiness and high precision;
Realizing contemporary opening hole processing at both ends;
Contemporary processing of 3 tools;
Shortening operation time;
Product specification
| Model |
|
|
BNE-42S6 |
BNE-51S6 |
BNE-42SY6 |
BNE-51SY6 |
| hydraulic chuck |
SP1/SP2 |
|
5"/5" oil pressure |
6"/5" oil pressure |
5"/5" oil pressure |
6"/5" oil pressure |
| bar maximum machining diameter |
SP1 |
|
42mm |
51mm |
42mm |
51mm |
| SP2 |
|
42mm |
| standard finishing length |
SP1 |
|
90mm |
| tool table type |
HD1 |
|
12 angles tool turret |
| HD2 |
|
12 angles tool turret |
| move lift |
HD1 |
X1 axis |
175mm |
| Z1 axis |
380mm |
| Y axis |
- |
±40mm |
| HD2 |
X2 axis |
145mm |
| Z2 axis |
175mm |
| Rprincipal axismove lift |
|
|
450mm |
| height of knife handle |
|
|
□20mm |
| diameter of opening bit knife handle |
|
|
25mm |
| rotation tool maximum installation amount |
|
|
12 |
| |
|
12 |
| principal axis rotational speed |
SP1 |
|
6,000 min-1 |
5,000 min-1 |
6,000 min-1 |
5,000 min-1 |
| SP2 |
|
5,000 min-1 |
| principal axis motor |
SP1 |
|
15/11kW |
| SP2 |
|
5.5/3.7kW |
| height of machine tool |
|
|
1,925mm |
| floor dimension |
|
|
2,690×2,160mm |
| weight of machine tool |
|
|
7,600kg |
7,800kg |
7,600kg |
7,800kg |
|
